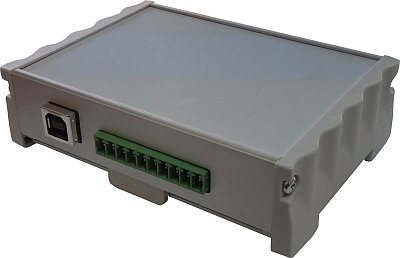

IA-3741-U
Interested in this product?
4-20mA, Up/Down, Loop Controller
List of features
Dual 16bit Analog Input channels
4-20mA Current reading ready
Delta-Sigma Technology
Accuracy 0.1%
2-ch ‘Dry-Contact’ Inputs
2-ch 5Amp Relay contact rating
Master/Slave operation
Dual use USB port
Onboard watchdog protection
High noise immunity
Din-Rail mounting ready
Description
The IA-3741-U is a Multifunction Industrial Control module that includes two Analog Input channels, two Digital Input channels two Relays and an on board Microcontroller that is capable of managing these functions as a USB controlled Slave System or as a Stand-alone System. The Analog Input converters are of 16 bit resolution, Delta Sigma Technology, with a channel accuracy of 0.1%. The Relays contact rating is 5Amp @ 30VDC and 5Amp @ 250VAC. The software support package includes Dot.net Library, Open Source code examples and an operation utility for fast system integration.
